PMM-2 AMPHIBIOUS BRIDGING FERRY

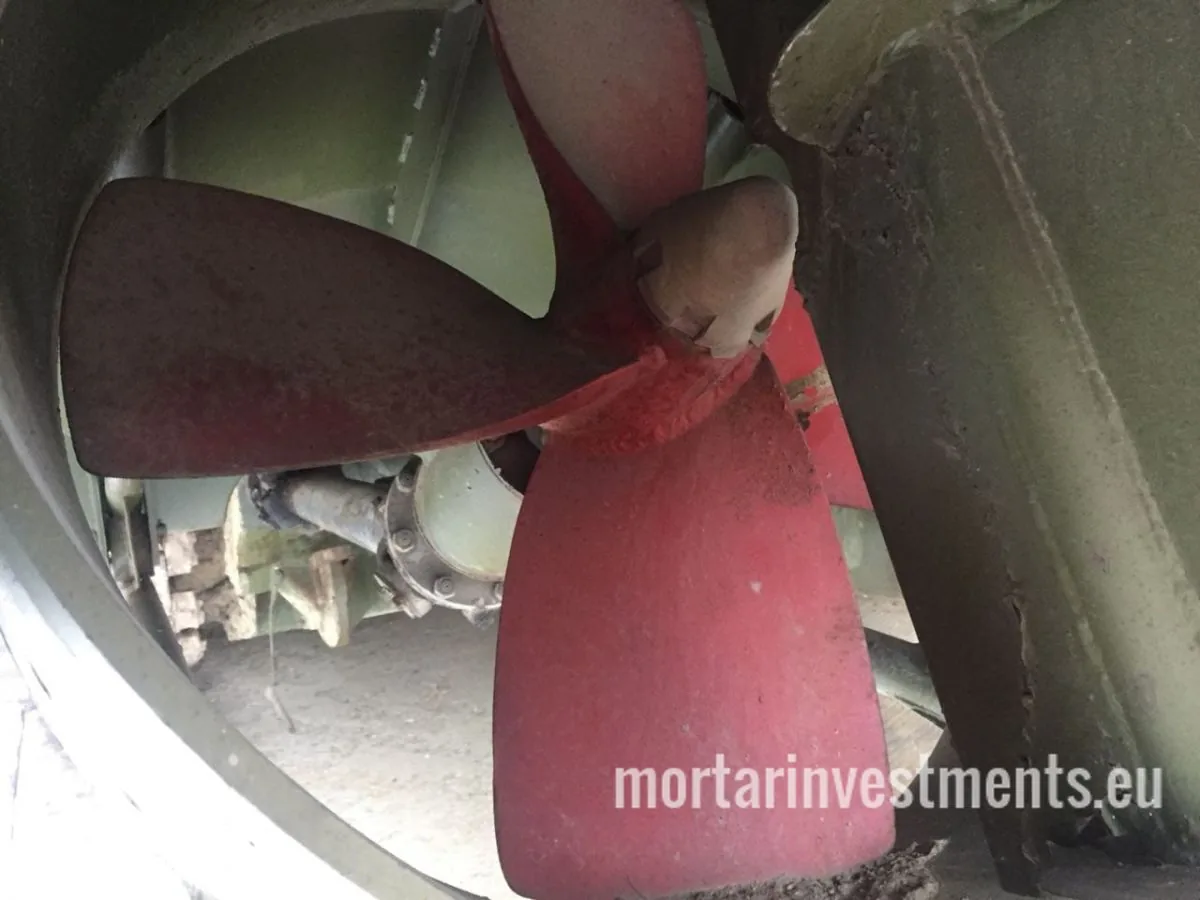

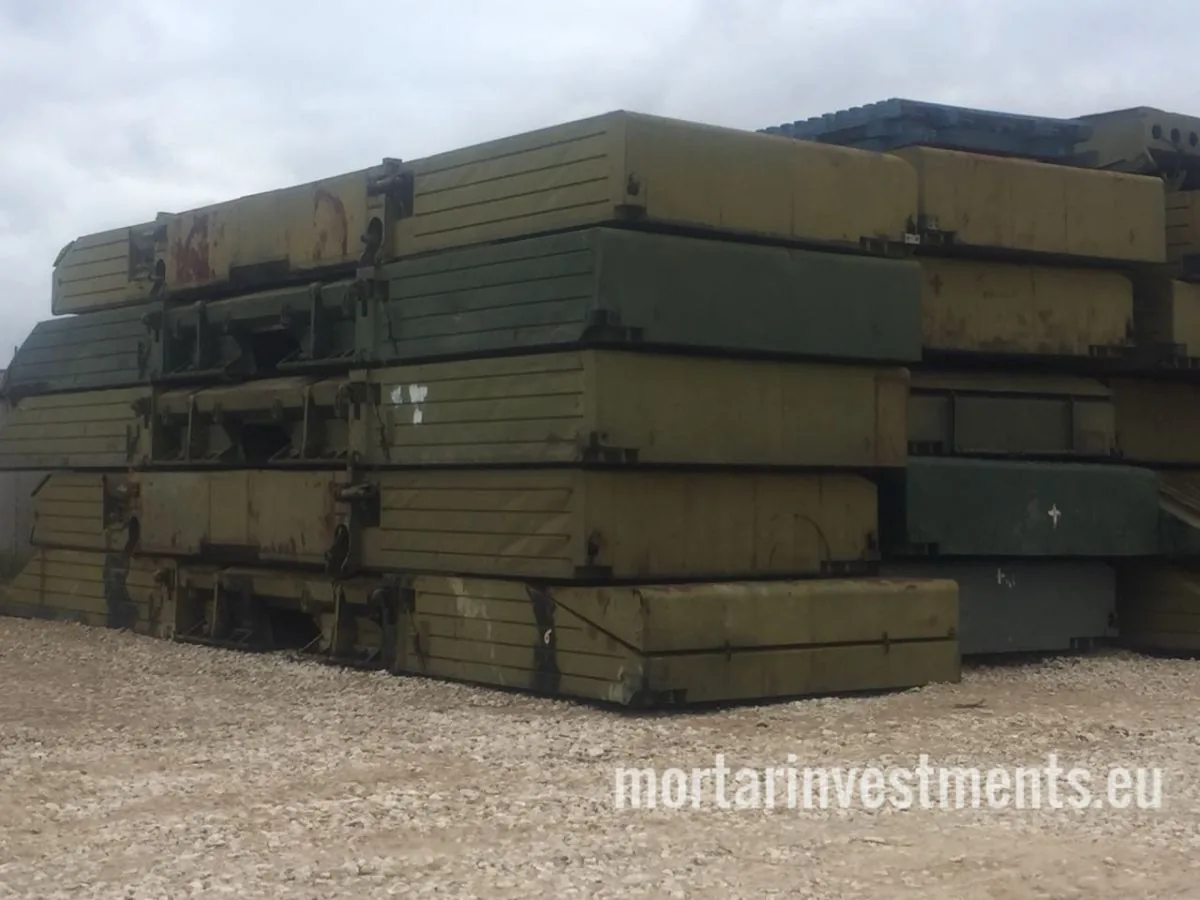

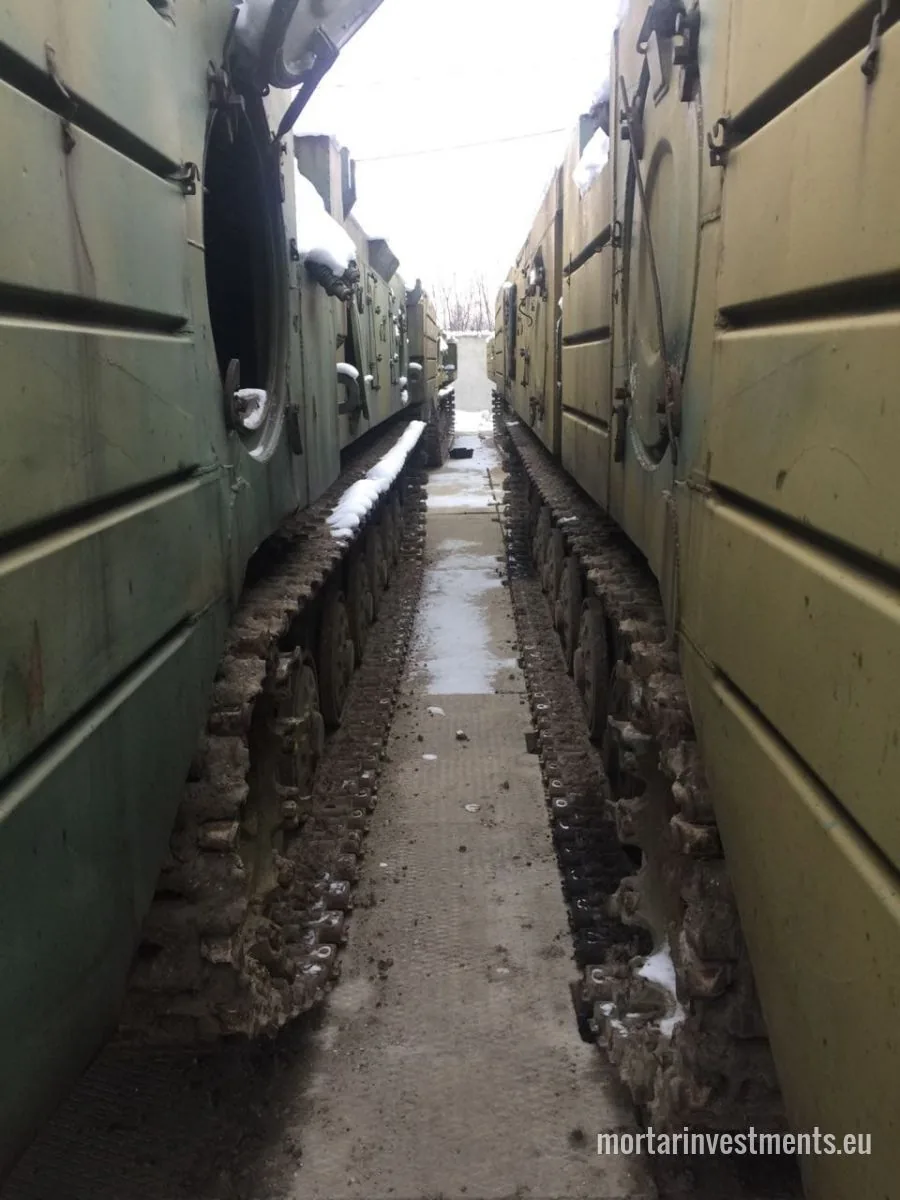

PMM-2: Ferry-bridge machine - 2nd model - combat vehicle of the engineering troops (ferry-bridge machine) of the Armed Forces of the USSR . The ferry-bridge machine PMM-2 is designed for crossing tanks, self-propelled artillery installations and other equipment made on the basis of the tank over water obstacles. Technical Description: The ferry consists of a caterpillar floating conveyor with a waterproof deck hull, connected to the hinge of two additional pontoons with ramps, docking devices and carriageways. The ferry has a three-seater cabin with a filter-ventilation unit and means of internal and external communication, a navigational propulsion and steering complex, anchor-mooring equipment, a water drainage system, fire fighting equipment, and more. Specifications: ferry weight - 36 tons; carrying capacity - 40 tons; engine power - 522.5 kW; speed on land - 55 km / h; cruising range by land - 500 km; crew - 3 people; length - 13380 mm; width - 3300 mm; height - 3800 mm; the smallest turning radius on land is 2.75 meters; diameter of circulation on the water - 28 meters; draft on mooring lines - 32.37 kN; assembly time - 5 minutes. Ferry specifications  Of several PMM-2 self-propelled ferries, ferries of increased carrying capacity are assembled: Ferry from two PMM: carrying capacity - 80 tons; ferry length - 20 meters; assembly time - 8 minutes. Ferry from three PMM; carrying capacity - 120 tons; ferry length - 30 meters; assembly time - 10 minutes.
